Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

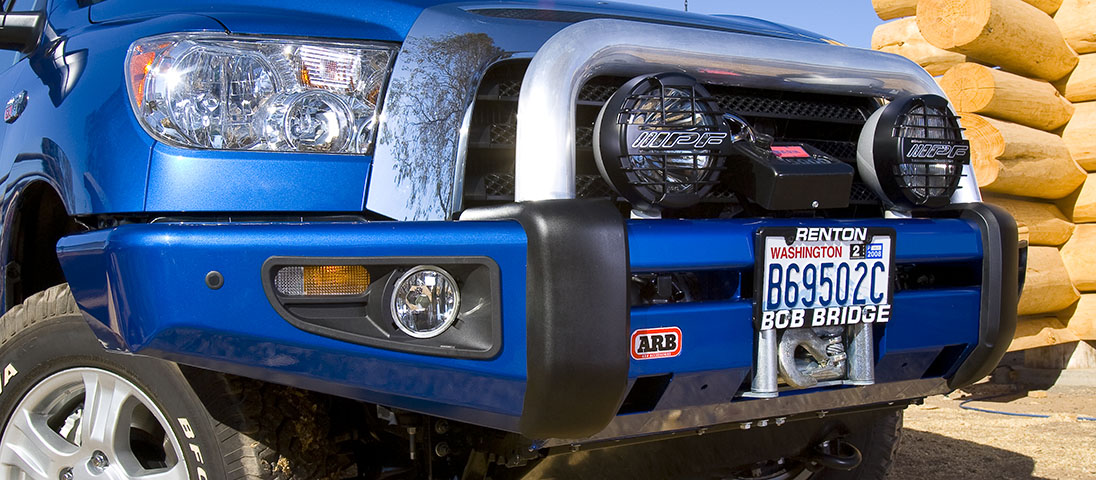

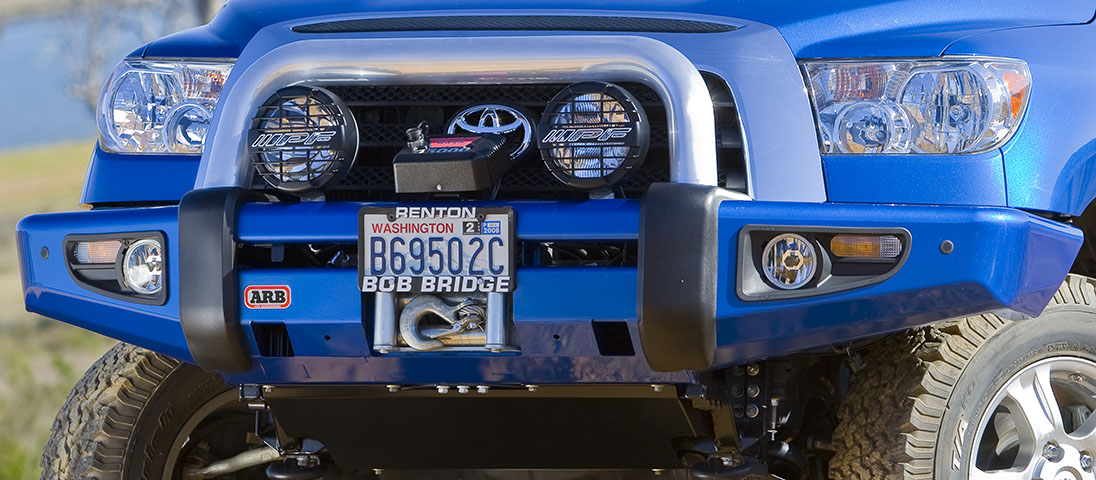

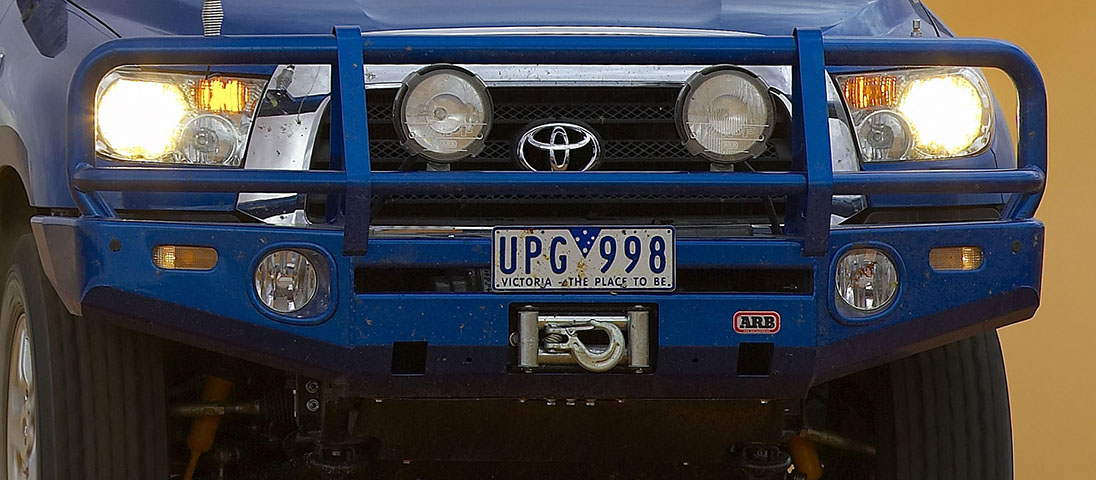

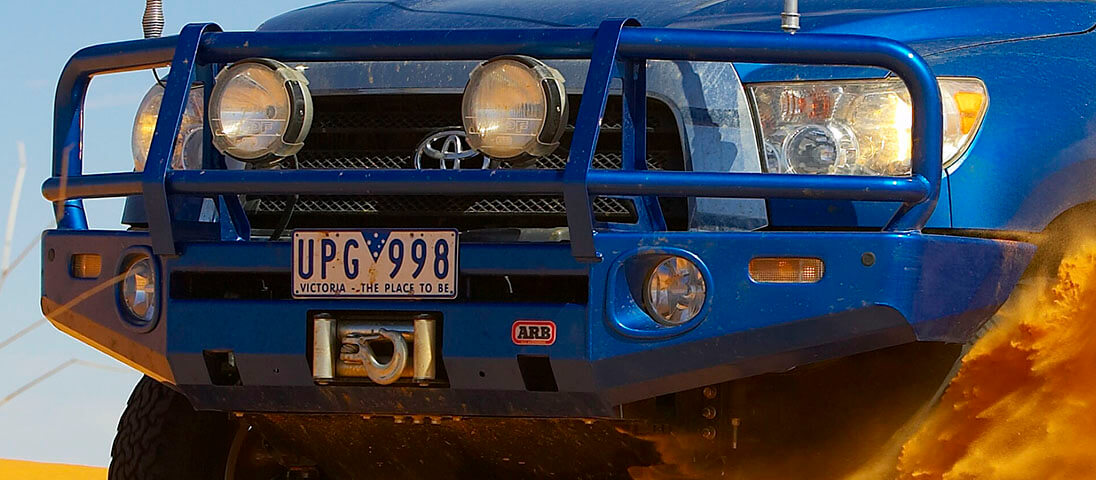

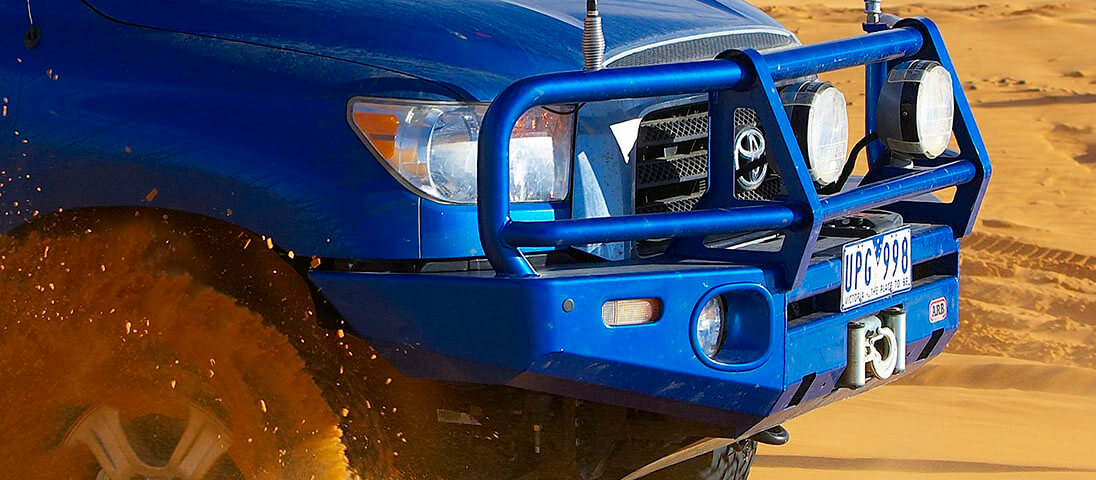

Manufactured from steel for ultimate strength and powder coated for durability, the Deluxe bull bar is designed to complement the vehicle’s style and safety systems while offering a solid platform to mount essential 4WD accessories in a seamless and integrated package.

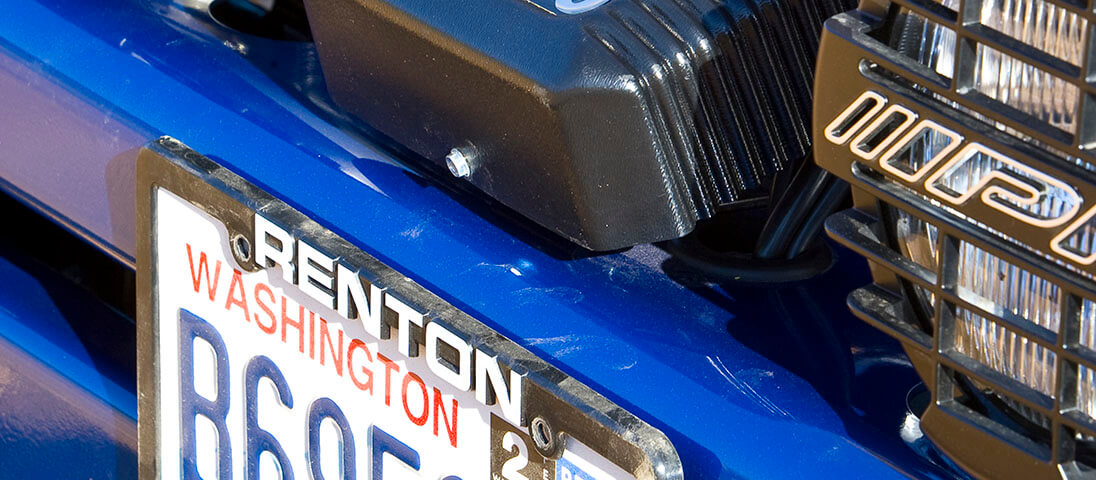

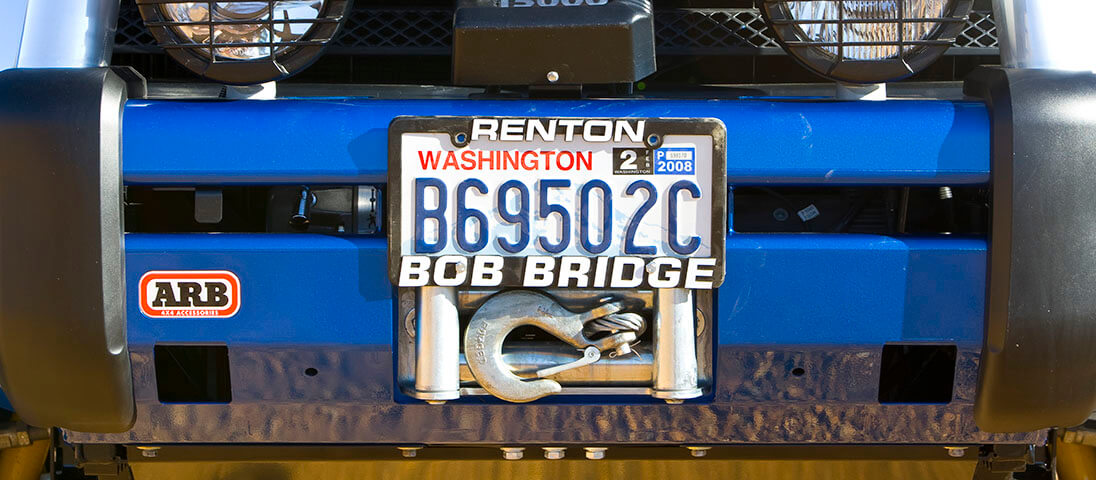

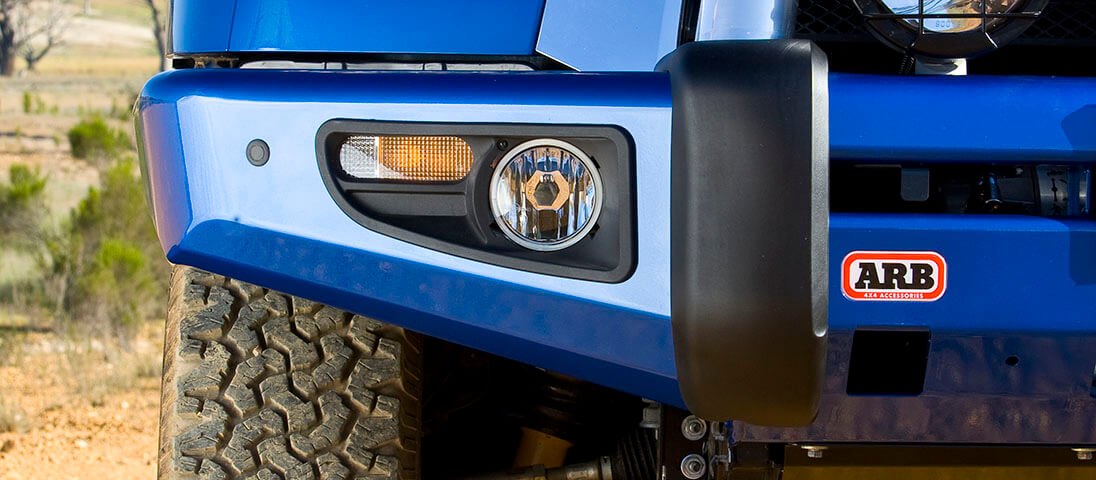

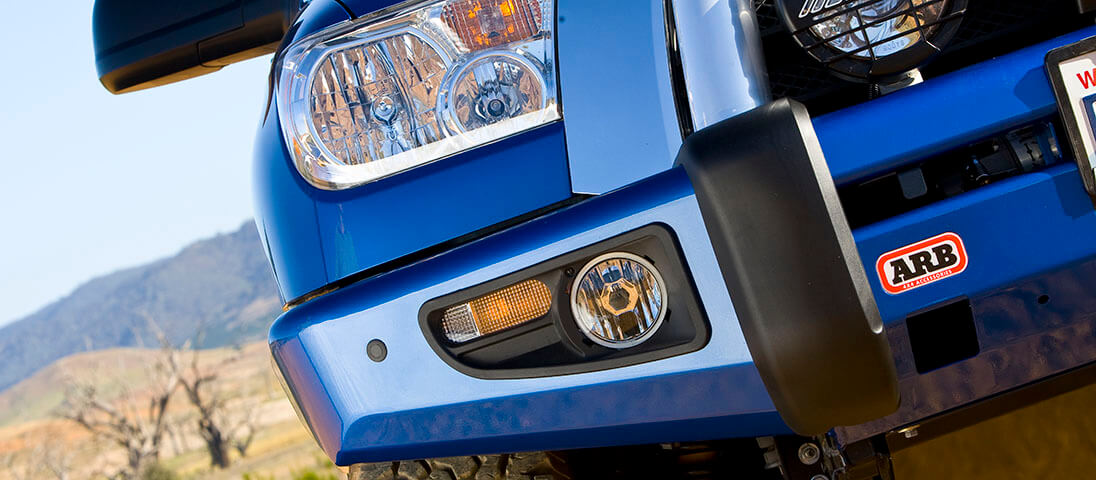

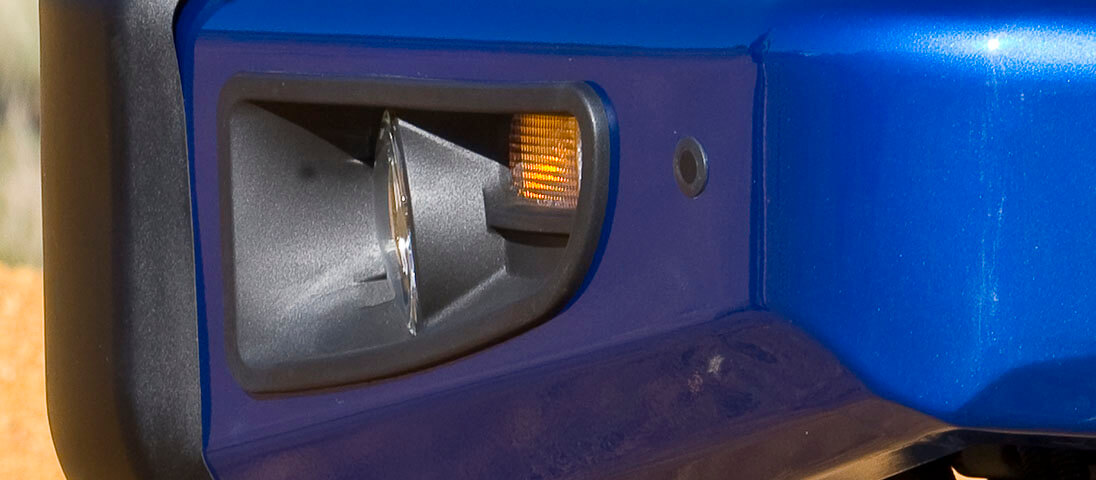

Available for the Tundra models, the Deluxe bull bar is compatible with a selection of Warn, Smittybilt and Bushranger low mount winches. A cover panel finishes off the bar for when a winch is not fitted. To complement the bar, optional fog light kits are also available.
For added aesthetics, optional colour coding is available on all models.

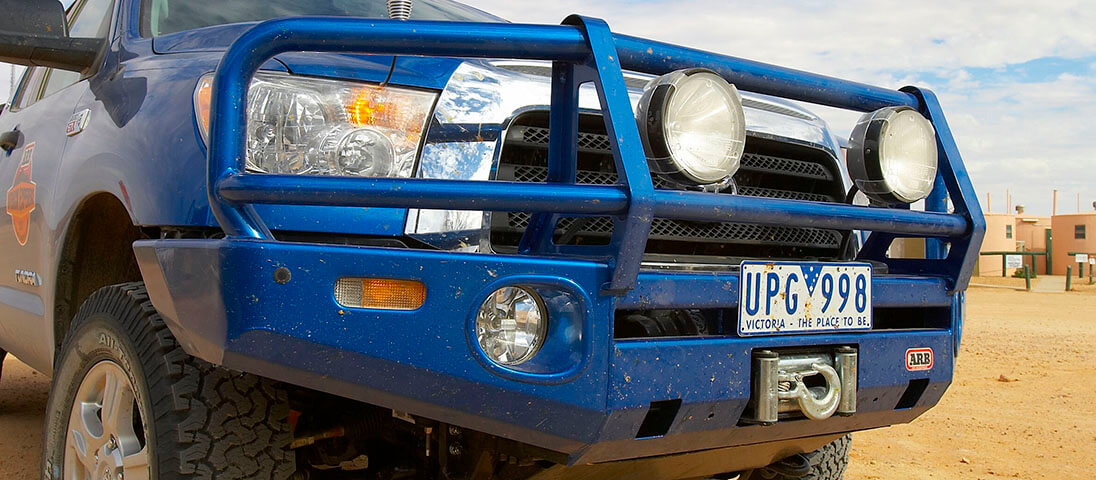

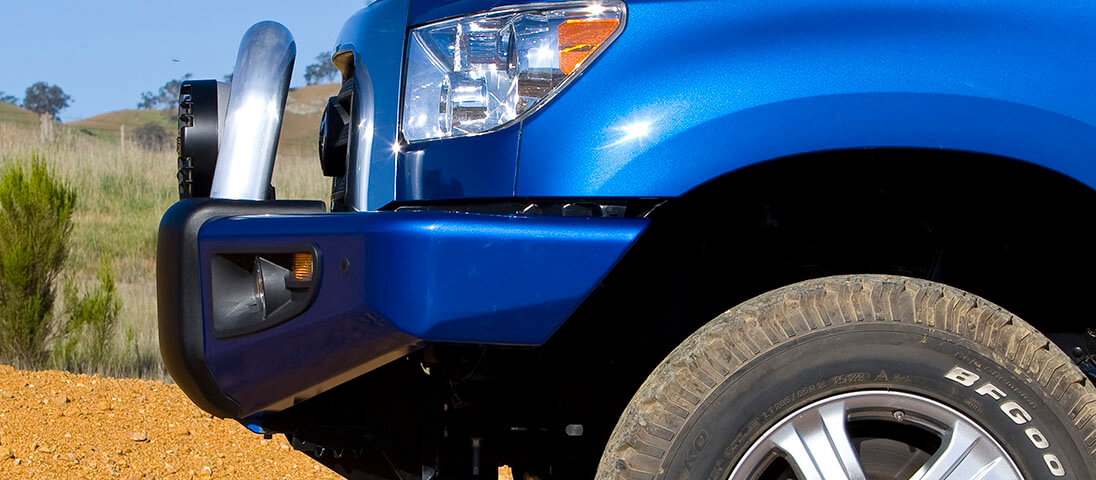

Sharing many of the strength related features of a deluxe bumper, including ARB’s five fold upswept and tapered wing profile, the Sahara bumper offers a different look without sacrificing practicality.
Like the Deluxe bumper, the Sahara bumper also provides a solid platform for adding other accessories such as winches, driving lights and CB antennas.
Available either with or without the polished center tube (on most newer models), the Sahara bumper offers owners greater flexibility in creating their desired look.
Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.
ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.
Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.
When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
To complete the manufacturing process all ARB bars are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They’re then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, power coating provides an excellent base for painting if colour coding is required.
